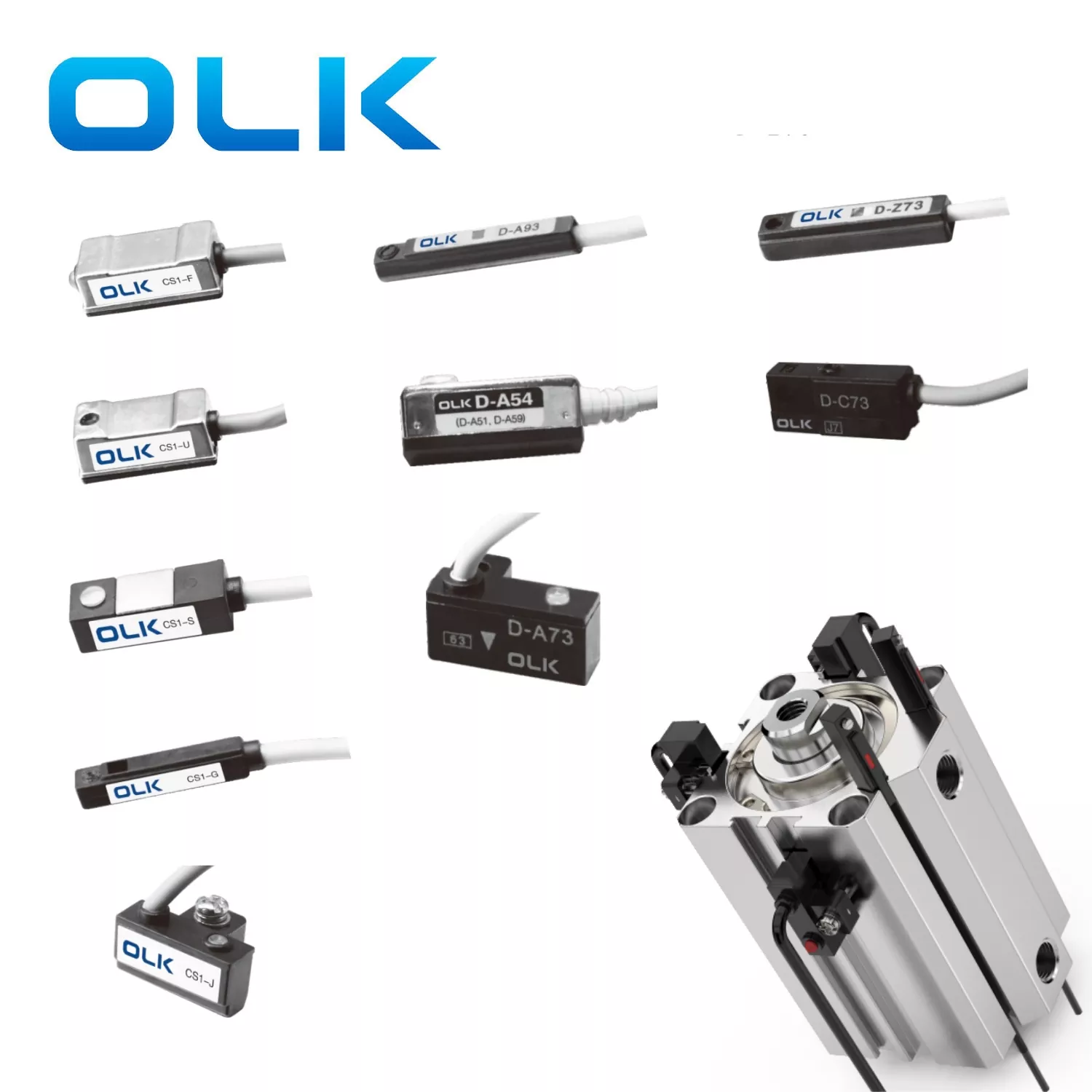

Cilinder magnetische switc

OLK Pneumatic is een van de professionele fabrikanten van magnetische schakelaars en leveranciers in China. Onze producten hebben op voorraad van de fabriek, welkom bij de magnetische schakelaar van de groothandelcilinder van ons.

Stuur onderzoek

Productomschrijving

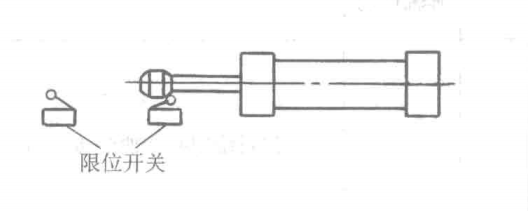

Cylinder magnetic switch is used to detect the position of air cylinder stroke, Do not need for machine control valves or stroke switches and their mounting brackets at both ends of the stroke, and without the need for collision blocks at the end of the piston rod, making it easy to use and compact in structure. High reliability, long lifespan, low cost, and short switch response time, hence it has been widely used.

OLK suggest when using, it is important to note that Cylinder magnetic switch should not be installed near devices with strong magnetic fields. When two pneumatic cylinders equipped with magnetic switches move in parallel, to prevent magnetic interference, the distance should be greater than 40mm. It is necessary to regularly check whether the position of the magnetic switch is offset.

Characteristics of magnetic induction switch

·Intelligent sensing

·Magnetic stability, sensitive induction

·Easy to install, can be installed at any position along the cylinder stroke

Model	CS1-F	CS1-U	CS1-J	CS1-S	CS1-G	D-A93	D-A73	D-Z73	D-A54
Applicable cylinders	SC/MAL/MA	SC/MAL/MA	SDA/TDA/TN	MAL/MA	SDA(GROOVE)	SU(SMC)	CQ2B(SMC)	CXS(SMC)
Installation method	Tie rods/Ring belts	Tie rods/Ring belts	Track	Annule	Track	Track	Track	Track	Track

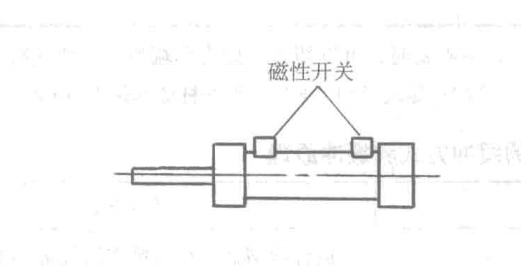

Cylinder Application Diagram
Outline dimension diagram
Switch Type	SPST Normally Open	SPST Normally Open	SPST Normally Open	SPST Normally Open	SPST Normally Open	SPST Normally Open	SPST Normally Open	SPST Normally Open	SPST Normally Open
Sensing Type	Reed switch with contact	Reed switch with contact	Reed switch with contact	Reed switch with contact	Reed switch with contact	Reed switch with contact	Reed switch with contact	Reed switch with contact	Reed switch with contact
Operating Voltage	5–240V DC/AC	5–240V DC/AC	5–240V DC/AC	5–240V DC/AC	5–240V DC/AC	5–240V DC/AC	5–240V DC/AC	5–240V DC/AC	5–240V DC/AC
Max Switching Current	100mA (max)	100mA (max)	100mA (max)	100mA (max)	100mA (max)	100mA (max)	100mA (max)	100mA (max)	100mA (max)
Max Contact Capacity	10W (max)	10W (max)	10W (max)	10W (max)	10W (max)	10W (max)	10W (max)	10W (max)	10W (max)
Internal Power Consumption	None	None	None	None	None	None	None	None	None
Voltage Drop	Max 2.5V @ 10mA DC	Max 2.5V @ 100mA DC	Max 2.5V @ 100mA DC	Max 2.5V @ 10mA DC	Max 2.5V @ 10mA DC	Max 2.5V @ 40mA DC	Max 2.5V @ 10mA DC	Max 2.5V @ 40mA DC	Max 2.5V @ 40mA DC
Leakage Current						Max 10W		Max 10W	Max 10W
Indicator Light	Red LED	Red LED	Red LED	Red LED	Red LED	Red LED	Red LED	Red LED	Red LED
Cable	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC	2.8φ, 2C, Gray oil-resistant PVC
Sensitivity					60 Gauss	60 Gauss	60 Gauss	60 Gauss	60 Gauss
Max Switching Frequency	200HZ	200HZ	200HZ	200HZ	-	–	-	–	-
Operating Temperature	–	–	–	–	–	–	–	–	–
Shock Resistance	30G	30G	30G	30G	30G	30G	30G	30G	30G
Vibration Resistance	–	–	–	–	–	–	–	–	–
Protection Grade	–	–	–	–	–	–	–	–	–
Protective Circuit	None	None	None	None	None	None	None	None	None

Accessories for magnetic switches

Model	SU-10	SU-12	SU-15	SU-16	SU-18	TCS1-F
Applicable cylinders	SU32	SU32/40/50	SU63	SU80/100/12		Bracket
Installation method	Track	Track	Track	Track	Track	Screw
Unit	PCS	PCS	PCS	PCS	PCS	PCS
